VW T5 Transporter Face-Lift Caravelle/Sportline Tail-light Upgrade

While the face-lift (T5.1 2010 onwards) sportline/caravelle taillights literally bolt on to a T5 and plug in the wiring is in-fact different to the earlier T5.

Thankfully its a very simple procedure to change the wiring and you’ll only need one special terminal extractor tool (I’d recommend ordering a Laser 3932 Terminal Tool from eBay or Amazon).

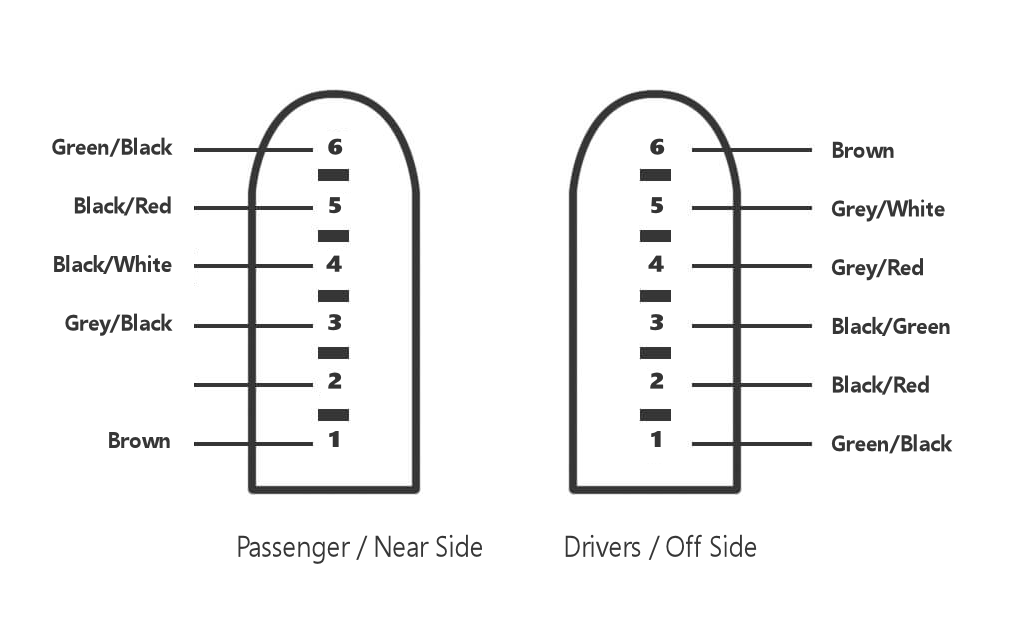

The new pinout is as follows:

You can watch my other video (VW T5 / T5.1 Transporter Facelift Headlight Connectors PIN Removal) which will explain how to remove and refit the pins on the headlights but its basically the same procedure:
