| Pin | Description |
| B | Battery (+12v Supply) |
| C | Choke (+12v Output) |
| I | Accessory/Ignition (+12v Outpuit) |
| S | Starter Solenoid (+12v Output) |
| M (Pair) | Kill Switch (GND one side and Stator other side) |

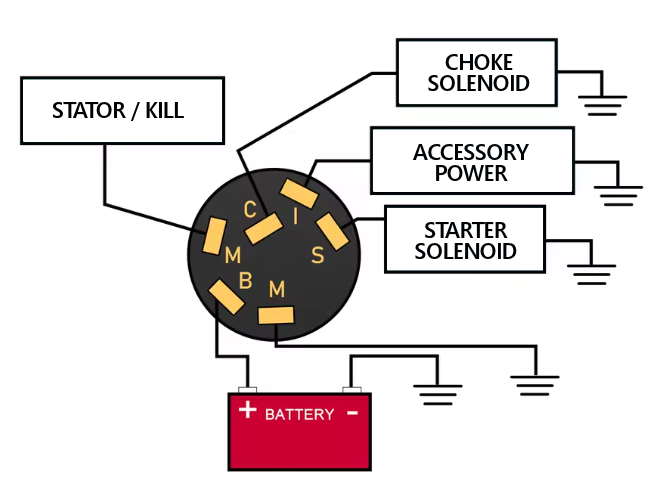

Chrysler Force Ignition Switch Wiring
| Pin | Description |
| B | Battery (+12v Supply) |
| C | Choke (+12v Output) |
| I | Accessory/Ignition (+12v Outpuit) |
| S | Starter Solenoid (+12v Output) |
| M (Pair) | Kill Switch (GND one side and Stator other side) |
